SINGLE PHASE STARTER

FEATURES:

  • Manual ON and OFF starter
  • Current based DRY RUN Prevention 16A MCB for short circuit protection
  • Digital VOLT and AMP meter – Shows motor status ( UL, OL, UV, OV, etc)
  • Customization possible

SPECIFICATIONS:

  • Input Voltage: 230V, 50Hz
  • Relay : SSD 40A (Varies depends on HP range)
  • AC Voltage Regulation: 160V-270V
  • Cabin Material: ABS

APPLICATIONS:

  • Fit for Single phase submersible motor

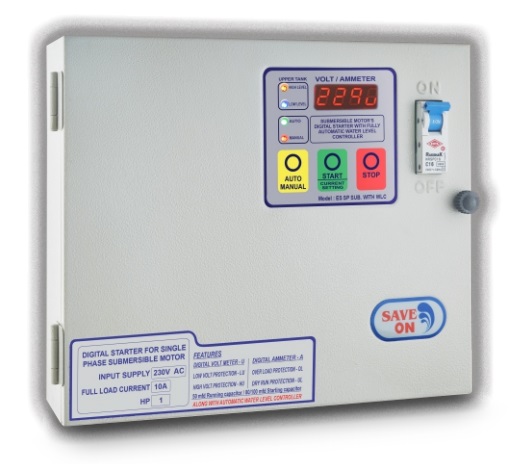

SINGLE PHASE STARTER WITH WLC

FEATURES:

  • Auto ON and OFF starter with respect to water level in OHT
  • Current based DRY RUN Prevention
  • 16A MCB for short circuit protection
  • Digital VOLT and AMP meter – ( UL, OL, UV, OV, etc), LED indication – (High & Low level, auto/ manual)
  • Customization possible

SPECIFICATI ONS:

  • Input Voltage: 230V, 50Hz
  • Relay : SSD 40A (Varies depends on HP range)
  • Sensors Operating Voltage: 6V High Frequency Sensing
  • AC Voltage Regulation: 160V-270V
  • Sensors Make: SS304
  • Cabin Material: ABS
  • Operating Principle: Conductivity

APPLICATIONS:

  • Fit for Single phase submersible motor

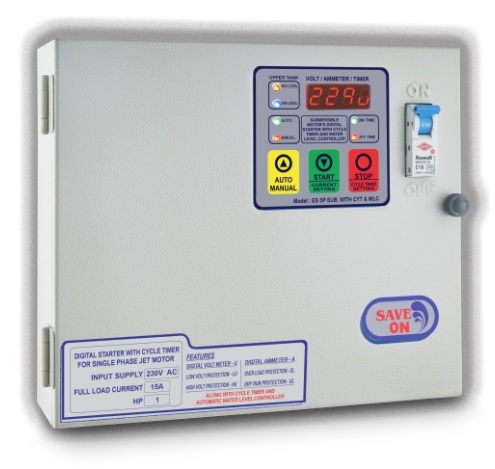

SINGLE PHASE STARTER WITH CYCLIC TIMER

FEATURES:

  • Auto ON and OFF with respect to cyclic time setting.
  • Current based DRY RUN Prevention
  • Cyclic timer for ON and OFF
  • 16A MCB for short circuit protection
  • Digital VOLT and AMP meter – Shows Timer and Motor status ( UL, OL, UV, OV, etc)
  • Customization possible

SPECIFICATIONS:

  • Input Voltage: 230V, 50Hz
  • Relay : SSD 40A (Varies depends on HP range)
  • AC Voltage Regulation: 160V-270V
  • Cabin Material: ABS

APPLICATIONS:

  • Fit for Single phase submersible motor
3 PHASE STARTER

FEATURES:

  • Manual ON and OFF starter
  • Current based DRY RUN Prevention 16A MCB for short circuit protection
  • Digital VOLT and AMP meter – Shows motor status ( UL, OL, UV, OV, etc)
  • Customization possible

SPECIFICATIONS:

  • Input Voltage: 230V, 50Hz
  • Relay : SSD 40A (Varies depends on HP range)
  • AC Voltage Regulation: 160V-270V
  • Cabin Material: ABS

APPLICATIONS:

  • Fit for Single phase submersible motor
